Class 313 Profile and Models

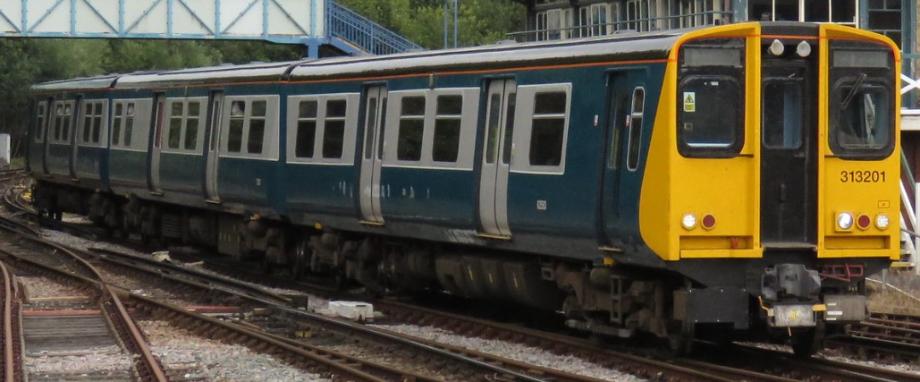

The British Rail Class 313 is a dual-voltage electric multiple unit (EMU) built by BREL. They were the first production units that were derived from British Rail's 1971 prototype suburban EMU design which, as the BREL 1972 family, eventually encompassed 755 vehicles over five production classes (313, 314, 315, 507 and 508). They were the first second-generation EMUs to be constructed for British Rail and the first British Rail units with both a pantograph for 25 kV 50 Hz AC overhead lines and contact shoe equipment for 750 V DC third rail supply. They were, additionally, the first units in Britain to employ multi-function automatic Tightlock couplers, which include electrical and pneumatic connections allowing the coupling and uncoupling of units to be performed unassisted by the driver whilst in the cab. The Class 313 units are the oldest EMUs on the National Rail network, at 46 years old; they entered service in 1976. The fleet has started to gradually be withdrawn, with Southern & Network Rail expected to be the final operators in 2023. 313201 has been selected for preservation at the NRM.

(Information provided via Wikipedia)

Type of Unit

Builder

Build Dates

Total Built

Power Output

Top Speed

Passenger Capacity

Operated By

Main Duties

In Service Until

Surviving Examples
